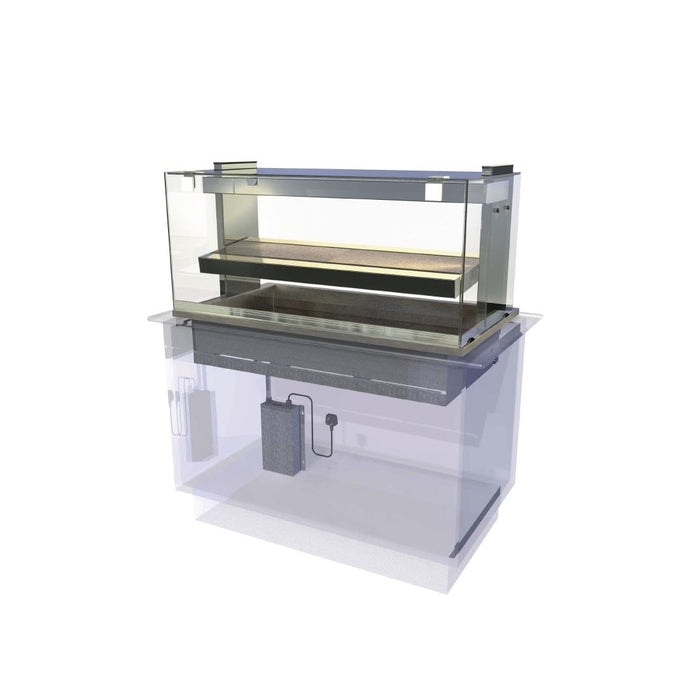

CED Kubus Drop In Heated Serve Over Display KHDL4

Capacity: 4 x 1/1 GN. Assisted Service. 1525mm Wide.
Display, illuminate, heat and protect pre-cooked food with CED's rectangular shaped Kubus assisted service heated deli drop in display. This 4/1 GN size hot display features a stainless steel heated 4/1 GN well area, inclined for improved customer vision. An adjustable temperature heated midshelf at eye level offers further hot merchandising space. The display fits into a pre-formed cut out made in a countertop . The assisted service superstructure is made from bright polished steel and aluminium rectangular profiles, with flat & toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the rectangular profile gantry & midshelf Base heat and surface heat can be adjusted & 'locked' from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switches, mounted at eye level on operator side of the display. The display has 24 hour operation & is factory set to hold food core at 85°C. Modular heater mat elements under the heated well area give even heat spread & the steel presentation surface makes for easier cleaning of pastry products etc. The display comes complete with lifting kit for installation and is supplied with a concealed control box & 2M flexible electrical conduit for hard wiring to a 3.8KW/20a/230v electrical supply. GN's Sold Separately.
Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
Gantry fitted with flat full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
24 hour operation as standard
Assisted service application
Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display)
Supplied with lifting kit for installation and concealed control box & 2M flexible electrical conduit for hard wiring to a 3.8KW/20a/230v electrical supply
Flat glass profile is designed to complement other units within the Kubus range
Food display examples : Long term holding (2 - 4 hours) - beans, bacon, stews, curry, chilli dishes, pasta. Short term holding (15-20 mins) - omelettes, eggs
Features an inclined heated well area and overhead heated mid shelf for eye level food presentation
Product illumination/ surface heat provided by infra red quartz heat lamps to each 1/1 GN area. Lamps are housed within a rectangular profile gantry and mid shelf
Base heat is provided to each 1/1 GN area by individual heater mats, mounted under the steel well surface
You can check the Specification tab for more details.

Capacity: 4 x 1/1 GN. Assisted Service. 1525mm Wide

Power: 3.8kW, 230V, 20A

Height: 540

Width: 1525

Depth: 660

Weight KG: 123kg

Internal Depth: 540(H) x 1525(W) x 660(D)mm

Temperature Range: 85 °C to 110 °C

Dimensions: 540(H) x 1525(W) x 660(D)mm

Fuel Type: Plug

Capacity: 4 x 1/1 GN

Colour: Chrome & Black

Brand: Kubus

Delivery Time: 5-6 weeks

Warranty: 1 Year
