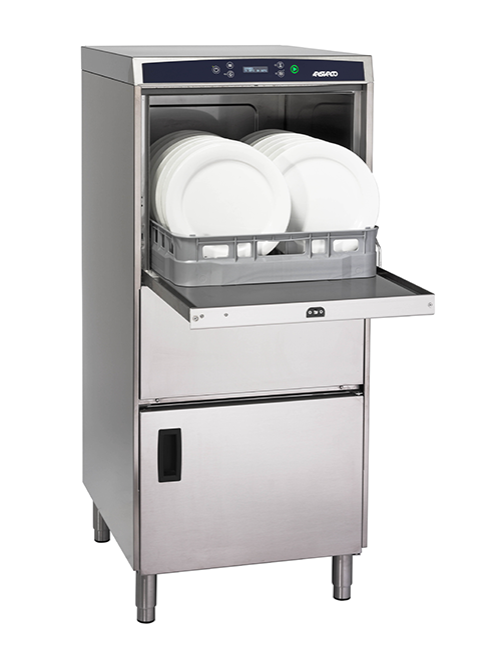

Aristarco AS60.40EHPRSSD/WS - 22 Plate Dishwasher with inbuilt water softener 600 x 500mm Basket

This Aristarco AS60.40EHE� WRAS approved Floorstanding� dishwasher is manufactured with a double skinned door and body helping to reduce both Noise and Energy consumption. Fitted with Electronic controls, Green function during non washing cycles, Soft start wash pump function and detergent, rinseaid and drain pumps as standard.

Features:

•

  Basket size; - 600 x 500mm 22 plate capacity with a load height of 410mm - will take 600 x 400mm bakery & 1/1gn trays



•

  Output - Upto 40 baskets/hour



•

  Operation;�



•

  Electronic controls with colour code switch



•

  Choice of 4 washing cycles - Light (1.5 mins), STD ( 2 minutes), Heavy (3 mins) Intense (9 mins) -
• Wash program times can be adjusted to meet customer requirements
• Forced drain function - this can be set to inform the operator when the water in the wash tank needs to be drained and refilled so always washing with clean water - ideal for heavy use sites
• Cleaning function - at the end of the day an automatic cleaning cycle of the wash tanks takes place
• Green function - puts the machine into standby when not being used



•

  Water consumption per wash is 2 litres



•

  Tank capacity = 22 litres with rinse boiler capacity of 5.5 litres



•

  Fitted with thermostop - this only allows the machine to operate when the rinse and wash temperature are reached - this guarantees hygienic washing



•

  Hot rinse



•

  Cold water feed (between 10 & 50�C) with a supply pressure between 2 and 5 bar



• Standard features;
• WRAS approved�- Inbuilt break tank with rinse booster pump
• SD Clean water system�- each time a rinse cycle is activated the equivalent dirty water is pumped out from the bottom of the wash tank, this means that fresh rinse water is constantly topping up the wash tank water.



• Inbuilt water softener - this can be set to suit the hardness of the water
• Electric Detergent & Rinse aid pumps
• Removable primary surface tank filters - collects larger items (forks, spoons etc) preventing them entering the wash tank�
• Plastic wash pump filter, protects the pump from risk of blockage - removable for cleaning
• Front control panel slides out to allow easy access for maintenance
• Component diagnosis - the engineer can test if all components are working correctly so reducing repair times



•

  Automatic end of day self cleaning of water tank



•

  Soft start operation of wash pumps - increases pump life��



•

  Removable stainless steel wash and rinse arms to top and bottom



•

  Automatic filling



•

  Door microswitch - stops wash arms rotating when door is opened



•

  Anti back flow valve
• Component diagnosis function - a service engineer can check which components need attention
• Construction;
• 304 Stainless steel Double skinned body - reduces noise level and saves energy by reducing heat loss
• 316 Marine grade stainless steel boiler
• Stainless steel wash and rinse arms - do not get brittle and crack like plastic ones
• Preformed basket runners allow easy cleaning of the interior
• Base stand with door and basket storage runners



•

  Accessories supplied;



• 2 x Plastic Plate baskets 600 x 500mm



•

  1 x Plastic Cutlery basket



•

  1 x Water inlet hose - 2 mtrs



•

  1 x Drain hose - 2.5 mtrs

Height: 1260h

Weight KG: 0
