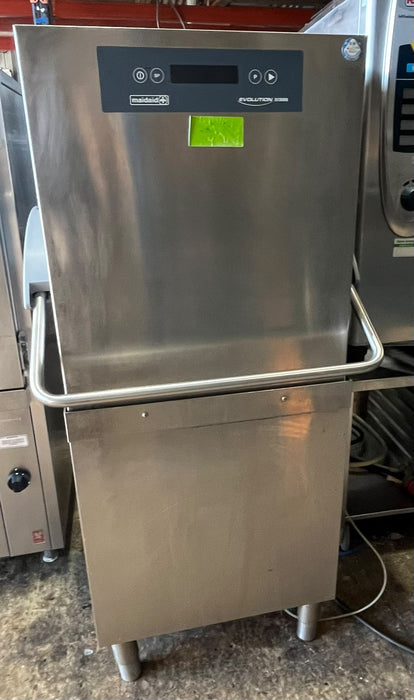

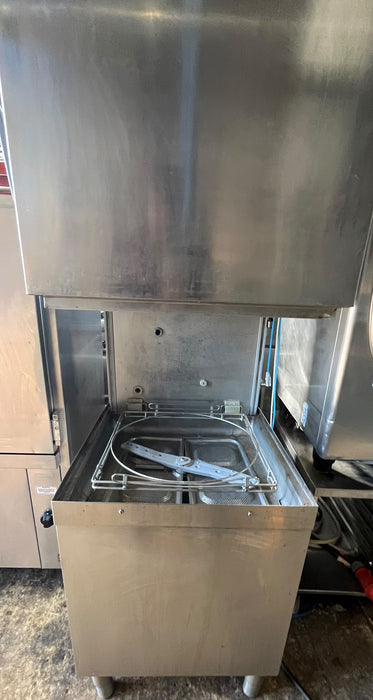

Maidaid Evolution 3135 WS Commercial Pass-Through Dishwasher
Brand: Maidaid
Model: Evolution 3135 WS
Type: Commercial hood/pass-through dishwasher
Basket size: 500 × 500 mm
Power supply: 3 Phase
Integrated water softener: Yes
Drain pump: Yes
Break tank: Yes
Construction: Stainless steel, fully double-skinned body and hood
The Maidaid Evolution 3135 WS is a heavy-duty commercial pass-through dishwasher designed for professional kitchens, restaurants, pubs, hotels, catering establishments, schools and other high-volume applications.
It features an integrated continuous water softener, powerful boiler, drain pump and break tank. The machine uses a 500 × 500 mm rack and has a maximum usable loading height of 440 mm.
Technical specifications
* Overall width: 640 mm
* Overall depth: 755 mm
* Height with hood closed: 1,535 mm including adjustable feet
* Height adjustable: 1,535–1,595 mm
* Height with hood open: approximately 2,050–2,110 mm
* Basket/rack: 500 × 500 mm
* Maximum usable height: 440 mm
* Door opening: 460 mm
* Wash tank capacity: 22 litres
* Water consumption: approximately 2 litres per cycle
* Wash temperature: 60°C, adjustable
* Rinse temperature: 82°C, adjustable
* Water inlet pressure: 2–4 bar
* Water inlet connection: ¾” BSP
* Waste connection: 29 mm internal / 34 mm external
* Noise level: ≤65 dB
* Wash tank element: 2.5 kW
* Boiler element: 9.5 kW
* Wash pump: 0.7 kW
* Total installed power: 10.2 kW
* Electrical supply: 3-phase
* Recommended/fused supply: 20A according to the manufacturer’s specification
* Theoretical productivity: up to 51 racks/hour
* Effective productivity: approximately 36 racks/hour, depending on loading/reloading conditions.
Features
* Integrated continuous water softener
* Built-in drain pump
* Built-in break tank
* Large backlit polychromatic LCD display
* Soft-touch control buttons
* Operational self-diagnostics and alarm system
* Triple wash-tank filtration
* Stainless-steel scrap-tray filters
* Quick-release wash and rinse arms
* Dual-flow wash pump
* Automatic detergent and rinse-aid dosing pumps
* Automatic end-of-service self-cleaning cycle
* Selectable energy-saving mode
* Adjustable wash/rinse temperatures
* Adjustable cycle times
* Fully double-skinned construction
* Easy-lift/super-slide hood
* Moulded wash tank for easier cleaning
* Three standard wash cycles
* Multiple specialist wash programmes.
Standard wash cycles
The manufacturer’s specification gives standard cycle times of approximately 70, 90 and 180 seconds, with additional specialist programmes available.
Refurbished condition
Professionally refurbished and fully tested.
The machine has been cleaned, checked and prepared for commercial use.
2 MONTHS PARTS WARRANTY INCLUDED.
Please note: 3-phase electrical supply and suitable water/waste connections are required. Installation should be carried out by a suitably qualified/competent person.
